i-AQS-N Series - Residential Inverter

Cooling capacity:6.5～25kW Heating capacity：7.4～26.6kW The Household Air Cooled DC Inverter Heat Pump meets the user's requirements for product reliability, safety and flexibility. The unit has been carefully designed and has a beautiful and elegant appearance. At the same time, the unit is flexible, and can be connected to different specifications and types of fan coil units, air handling units, and floor heating. Adopt leading frequency conversion energy saving technology. The energy efficiency performance of the unit stems from the application of cutting-edge DC frequency conversion technology. The unit is equipped with a DC variable frequency compressor and a variable frequency fan motor, and is equipped with advanced DC variable frequency control technology to adjust the capacity output of the unit according to the real-time change of the load. World-renowned accessories are selected and rigorously tested to ensure a proper fit. The fully enclosed scroll compressor and the low-noise fan make the operation noise extremely low; the high-efficiency inverter compressor and the precise electronic expansion valve throttling system ensure the high EER and COP values of the unit, especially in partial load operation, its energy efficiency than will be higher. High-precision capacity adjustment can realize 15%~100% frequency conversion adjustment, which can accurately realize low load, low output and low energy consumption.

Extended Functions：

Frame Structure Description：

Compressor Description：

Adopt Mitsubishi Electric high-efficiency DC inverter compressor
High-efficiency dual-rotor design The neodymium magnet rotor motor can generate a strong permanent magnetic field, which greatly enhances the compression torque and ensures high-efficiency operation of the compressor; CAE software optimizes the shape of the toothed stator core to improve motor performance.
Vector frequency conversion control technology It can output a smooth 180° sinusoidal voltage waveform, so that the stator coil of the compressor always forms a stable rotating magnetic field, which effectively reduces the vibration and noise of the compressor.
Efficient oil separation technology

Evaporator Description：

Adopt Danfoss high efficiency heat exchanger
??

Condenser：

The air-side heat exchanger adopts the design of hydrophilic aluminum foil, which improves the drainage capacity of condensed water and improves the heat exchange effect; the copper tube adopts the design of high-efficiency internal thread copper tube to improve the heat exchange effect of the refrigerant.

Control Cabinet：

Control System：

Intelligent control system

Certification and Honor：

Electric Control：

Inverter fan：

"Panasonic" DC inverter fan motor
High quality engineering plastic fan blades

Fujikoki Electronic Expansion Valve:：

High quality Fujikoki electronic expansion valve
500 steps of precise control, precise control of refrigerant flow Short drive time (quick response)
Lightweight and power saving
Service life of 100,000 times

Built-in Wilo pump：

High quality "Vilo" water pump
Low power consumption
High stability
low noise.
NSK, SKF bearings

：

?State Grid Chongqing Zhiwang Science and Technology Comprehensive Office Building?

Area：Chongqing?
Cooling Capacity：4800kW

Period：2021
Heating Capacity：5000kW

Building Function：Office Buildings
System：

Installed Units：

2 x ERACS3622E-N-D-B 1 x ERACS3602E-N-B 2 x ERACS3622E-N-B 52 x MFC 900 x FCU

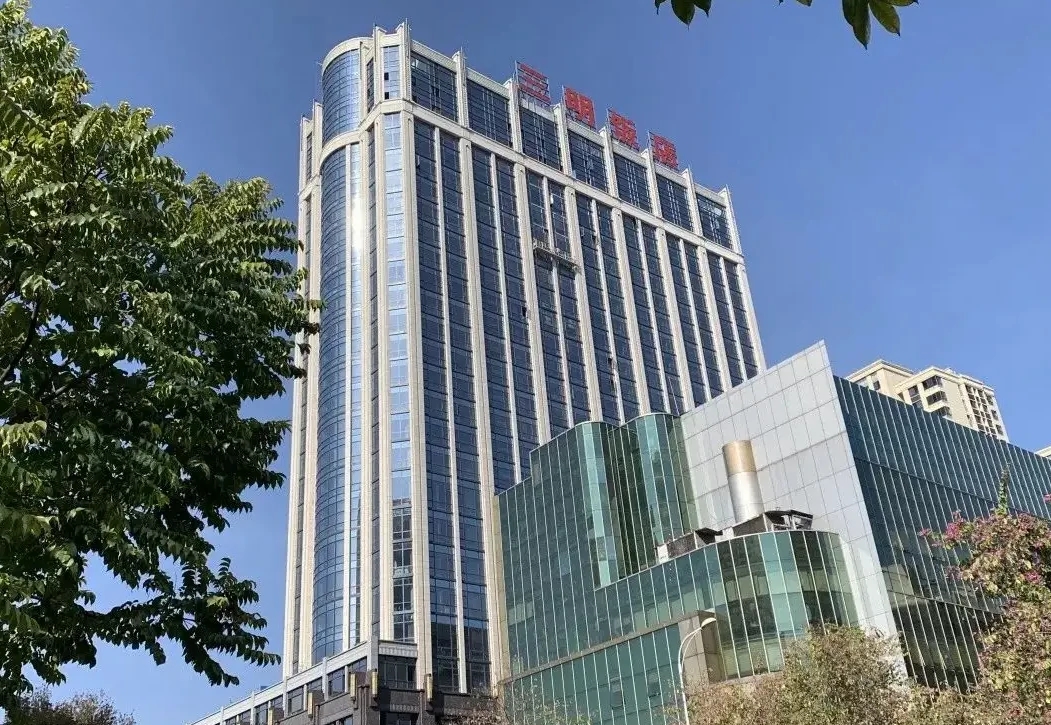

Jiangbin square, Sanming Hotel, Fujian Province

Area：Fujian
Cooling Capacity：13400kW

Period：2019
Heating Capacity：15400kW

Building Function：Hotel&Resorts
System：

Installed Units：

3 x TECS-W3902L-E 2 x ERACS5422E-N-R-SL

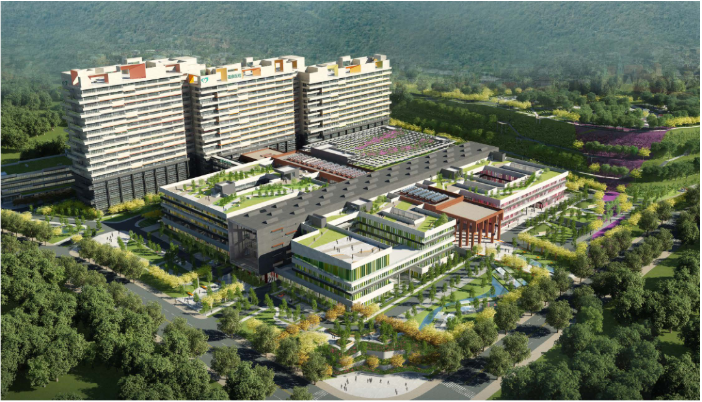

Fuding City Hospital Baisheng New area phase I

Area：Fujian
Cooling Capacity：3575KW

Period：2018
Heating Capacity：3711KW

Building Function：Healthcare / Hospitals
System：

Installed Units：

2X ERACS1702E-Q 2X ERACS1912EQB 2X ERACS2402E-Q 1X ERACS3622E-N-B

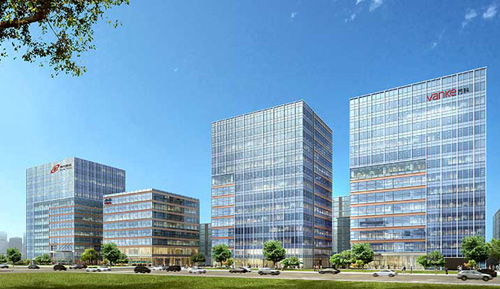

Vanke · Cuihu International

Area：Beijing
Cooling Capacity：6900kW

Period：2019
Heating Capacity：7300kW

Building Function：Office Buildings
System：

Installed Units：

2x ERACS2722E-N-B 2x ERACS4822E-N-B 2x ERACS3622E-N-B 2x ERACS2402E-N-B

beijing Miyun Gubei Shui Town

Area：Beijing
Cooling Capacity：5100kW

Period：2013
Heating Capacity：5600kW

Building Function：Residential buildings
System：

Installed Units：

2x Eracs 2422-SL 2x CSRAN1062-Y-SL 16x AQS 0182-N-LN 4x CSRAN 1562-Y-B 2x Eracs 3222-SL 1x Eracs 2722-SL
